5S in Practice: How to Create Organized Work Zones Using Aluminum Profiles and 3D Printed Accessories

Introduction: The Imperative of 5S in Modern Industrial Environments

In the relentless pursuit of operational excellence, manufacturing and logistics environments constantly seek methodologies that drive efficiency, enhance safety, and foster a culture of continuous improvement. At the heart of many successful lean transformations lies 5S – a systematic approach to workplace organization. More than just a tidiness campaign, 5S is a foundational lean tool that profoundly impacts productivity, quality, and safety by optimizing the physical layout of work zones.

The 5S methodology is a five-step process specifically designed to cultivate a more organized and productive workspace. Its implementation provides the essential groundwork upon which more advanced lean production tools and processes, such as Total Productive Maintenance (TPM), cellular manufacturing, Just-in-Time (JIT) production, and Six Sigma, can be successfully deployed. This hierarchical relationship means that without a well-established 5S system, subsequent lean initiatives may encounter significant challenges or even fail to achieve their full potential. For continuous improvement specialists and lean engineers, recognizing 5S not as an isolated project but as a prerequisite for broader strategic goals elevates the perceived value of investment in 5S-compatible infrastructure.

Successful 5S implementation yields tangible benefits, including substantial reductions in the physical space required for operations, systematic organization of tools and materials, and a decrease in waste generation from spills and accumulated contaminants. It also significantly bolsters safety by reducing the risk of accidents, making potential hazards more visible, and ensuring hazardous materials are stored appropriately. Furthermore, an organized and standardized environment streamlines processes, minimizes time wasted searching for tools, and reduces errors, thereby enhancing overall productivity and efficiency. This direct connection between physical organization and the elimination of waste translates into quantifiable cost savings and efficiency gains, underscoring the necessity of robust workstation design. A well-ordered physical space actively prevents various forms of waste, rather than merely containing them. Beyond the tangible, 5S fosters a positive work culture, boosts employee morale, and encourages a sense of ownership, leading to increased job satisfaction and reduced absenteeism.

The critical role of physical layout and workstation organization in successful 5S cannot be overstated. The physical arrangement of a workspace directly dictates the effectiveness of 5S principles. An optimal layout supports efficient process flows, minimizes waste, and directly contributes to an organization's strategic objectives. Thoughtfully designed physical layouts are instrumental in minimizing unnecessary movement, ensuring easy access to tools and materials, and preventing clutter. These outcomes are direct objectives of the "Set in Order" (Seiton) pillar of 5S. The efficiency gains derived from 5S, such as reduced search times and optimized space utilization, are inherently dependent on how tools, materials, and equipment are physically arranged within the work environment. Ignoring the physical layout is akin to accepting inherent waste within operational processes.

Understanding 5S: A Foundation for Lean Excellence

The 5S methodology, a structured program originating from Japan, aims to achieve total workplace organization by systematically transforming chaotic environments into streamlined, productive ones. Each 'S' represents a critical step in this transformative process.

The Five Pillars: Sort, Set in Order, Shine, Standardize, Sustain

• Sort (Seiri): This initial pillar focuses on eliminating any items from the workplace that are not essential for current production operations. The objective is to remove clutter, reduce distractions, and free up valuable space. Implementation typically involves categorizing items into those genuinely needed, those required elsewhere, those whose necessity is uncertain (often marked with a "red tag"), and those clearly not needed for immediate disposal or recycling. The "red tag" system is particularly vital for items of uncertain utility, as it facilitates their temporary removal to a designated holding area for review, a process that helps reduce excess inventory and optimize space utilization.

• Set in Order (Seiton): Following the sorting phase, this pillar concentrates on establishing efficient and effective storage methods. Items are arranged so they are easy to use, locate, and return to their designated places. The guiding principle here is "a place for everything, and everything in its place". Practical implementation involves ensuring frequently used items are easily accessible, grouping similar items logically, and providing organizational aids such as peg boards, hooks, shelves, and bins. A strong emphasis is placed on ergonomic principles to minimize physical strain and enhance operator comfort, optimizing tool placement for the worker. Clear labeling, shadow boards, and color-coding are indispensable visual management techniques for this step.

• Shine (Seiso): More than just cleaning, the "Shine" step involves the regular cleaning and inspection of the workspace and equipment to maintain functionality and expose abnormalities. It is an act of detailed inspection. This requires daily cleaning of floors, surfaces, and equipment, with responsibility extending beyond custodial staff to those who operate in the space, thereby fostering a sense of ownership. This routine process enables workers to proactively identify malfunctions such as leaks, vibrations, breakages, or misalignments before they escalate into equipment failures or production losses. This reframes "Shine" from a mere chore to a value-adding activity that contributes directly to asset longevity and product quality by enabling early detection of issues.

• Standardize (Seiketsu): This pillar focuses on creating consistent procedures and practices for an ideal workflow, ensuring uniformity and facilitating training. Its purpose is to transform the short-term improvements achieved in the initial steps into repeatable, ingrained processes. Implementation involves documenting best practices, developing visual guides, and establishing Standard Operating Procedures (SOPs) to ensure all team members consistently follow established rules. This also includes creating new training programs and assigning clear ownership for tracking adherence and designing additional visual aids as needed.

• Sustain (Shitsuke): Often considered the most challenging 'S', "Sustain" involves ensuring the team consistently adheres to and continuously improves the new standards, embedding 5S practices into the organizational culture. It transforms 5S from a one-time event into a continuous improvement cycle. This requires ongoing leadership commitment, regular audits, performance reviews, and continuous improvement meetings. Crucially, encouraging active employee participation and fostering accountability are key to preventing backsliding and ensuring the long-term viability of the 5S system. The success of "Set in Order" relies on "Sort," "Standardize" builds on the first three, and "Sustain" ensures the cycle continues, demonstrating the interdependent and cyclical nature of the 5S pillars.

Table 1: The 5S Pillars: Definition and Industrial Application

Why Physical Layout is Critical for 5S Success

While 5S principles are conceptual, their tangible impact is realized through the physical organization of the workspace. The strategic design of workstations and overall factory layouts is not merely supportive but fundamental to achieving and sustaining 5S benefits.

An optimal physical layout directly supports process flows, reduces various forms of waste, and significantly contributes to the achievement of strategic objectives. This direct connection to waste reduction is evident across multiple lean categories:

• Motion Waste: By strategically placing frequently used tools and materials within easy reach and optimizing workstation layouts, unnecessary movement by operators is minimized. This streamlines workflows and reduces physical strain.

• Waiting Waste: Clear layouts and designated storage spaces ensure that tools and materials are readily available when needed, effectively reducing downtime for workers awaiting components or equipment.

• Defects/Rework Waste: Organized workspaces, coupled with clear labeling and designated locations for tools and materials, significantly minimize the potential for errors during production, thereby reducing defects and the need for rework. This systematic approach to organization acts as a form of error prevention, similar to Poka-Yoke, where the physical environment inherently guides correct behavior and makes deviations immediately apparent.

• Inventory Waste: The sorting and organizing aspects of 5S, when applied to physical space, lead to a reduction in excess inventory and optimization of stock levels, directly cutting costs associated with storage, management, and procurement of surplus materials.

Beyond these direct waste reductions, a well-organized and clean physical environment fosters a positive work culture, boosts employee morale, and encourages a sense of ownership and pride in the workplace. This, in turn, can lead to increased job satisfaction and reduced absenteeism. Furthermore, physical layouts that are intuitive and easy to navigate reduced training time for new employees, as visual cues embedded in the environment guide behavior without requiring constant supervision or explicit instruction.

The optimization of physical space also extends to environmental sustainability. Implementing 5S can significantly reduce the square footage needed for operations by organizing and disposing of unused equipment and supplies. This reduction in physical footprint translates to decreased energy consumption for heating and lighting. Additionally, the systematic organization of equipment, parts, and materials makes them easier to find, reducing unnecessary consumption. Employees are more likely to fully utilize one batch of chemicals or materials before opening new ones, leading to less material expiring and requiring disposal, and a reduction in waste generation from spills and clean-up. This demonstrates how lean physical organization contributes to broader sustainability goals.

Revolutionizing Workstation Design with Modular Aluminum Profiles

Traditional workstation designs often suffer from rigidity, making adaptation to evolving production needs cumbersome and costly. Modular aluminum profile systems, such as T-slot and V-slot, offer a paradigm shift, providing unparalleled flexibility, strength, and reconfigurability that perfectly aligns with 5S principles.

The Power of T-Slot/V-Slot Systems for Flexible 5S Layouts

Aluminum profiles are inherently modular structures that can be easily assembled into a vast array of configurations. T-slot profiles, the most common type, feature a simple T-shaped groove that allows for modular attachment of components anywhere along the profile length using specialized connectors. V-slot profiles, with their beveled edges, are particularly suited for linear motion applications involving wheels and bearings, and can even double as linear rails.

The modular nature of these systems stands in stark contrast to traditional framing methods like welding steel. Welding creates permanent joints, requires specialized skills and equipment, can introduce heat distortion, and makes subsequent modifications difficult and time-consuming. With T-slot profiles, assembly is fast and straightforward, often requiring only simple hand tools, eliminating the need for welding, grinding, or painting on-site. This ease of assembly drastically reduces project completion times and associated labor costs.

The ability to easily modify, reconfigure, or even completely disassemble and reuse components is a significant advantage. This allows workstation designs to evolve in tandem with production processes and extends the useful life of the entire structure. This inherent reconfigurability is a key enabler for the Kaizen philosophy of continuous improvement. If a workstation can be quickly and easily modified, even with a single Allen key, it significantly lowers the barrier to implementing small, incremental improvements suggested by workers. This transforms modular aluminum systems from static infrastructure into dynamic tools that actively facilitate a culture of continuous improvement, allowing continuous improvement managers to implement ideas rapidly and cost-effectively.

Benefits of Aluminum Profiles in 5S Implementation

The advantages of modular aluminum profiles directly support and enhance the implementation of 5S principles:

• Modularity and Reconfigurability: This core characteristic enables rapid assembly and disassembly, allowing components to be reconfigured or expanded to accommodate changing operations with minimal downtime. This is particularly crucial in modern production environments characterized by short fabrication cycles, smaller batch volumes, and a wider variety of products. This flexibility directly supports the "Set in Order" principle by allowing precise positioning of tools and materials and the "Sustain" pillar by facilitating continuous adaptation.

• Lightweight Strength: Aluminum offers an exceptional strength-to-weight ratio, providing substantial structural integrity while being significantly lighter than steel. This property facilitates easier handling, assembly, and relocation of workstations, contributing to operational agility.

• Corrosion Resistance: Aluminum's natural resistance to corrosion, due to a protective oxide layer, reduces maintenance costs and ensures the longevity of structures, even in environments exposed to moisture or chemicals. Unlike steel, aluminum does not rust.

• Reduced Assembly Time & Cost: The simplicity of the connection system dramatically reduces assembly time, eliminating much of the custom fabrication work associated with welded frames. Faster assembly directly translates to lower labor costs and quicker project completion times.

• Ergonomic Adaptability: T-slot aluminum extrusions facilitate the construction of ergonomic workstations that can be precisely tailored to specific tasks. Their modularity allows for easy adjustments in layout and height, enhancing worker comfort and productivity. This directly supports the "Set in Order" goal of optimizing tool placement for the operator.

• Sustainability: Aluminum is highly recyclable without degradation of its quality, making it a sustainable choice that aligns with greener manufacturing practices. Over 90% of aluminum profiles are reusable. This reusability and adaptability contribute to a lower Total Cost of Ownership (TCO) compared to rigid, disposable structures, providing a compelling financial argument for decision-makers beyond initial purchase price.

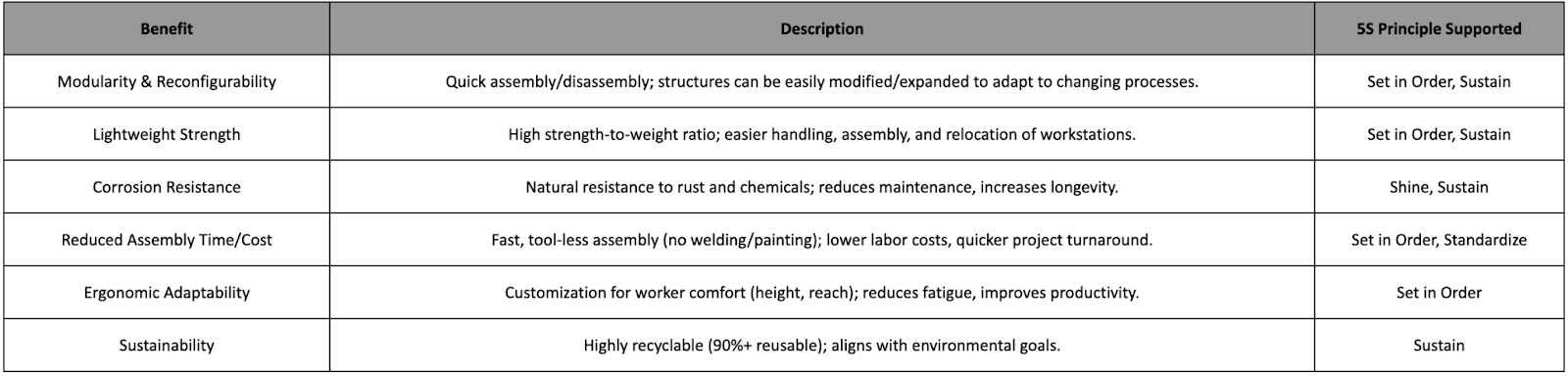

Table 2: Benefits of Modular Aluminum Profiles for 5S Workstations

Enhancing 5S with Custom 3D Printed Accessories

While aluminum profiles provide the structural backbone for flexible workstations, 3D printing offers an unparalleled ability to create highly customized, on-demand accessories that precisely meet the unique organizational needs of any work zone, significantly bolstering the "Set in Order" and "Standardize" pillars of 5S.

Targeting "Set in Order" and "Standardize" with 3D Printing

3D printing enables the creation of tailor-made storage solutions that are precisely adapted to specific requirements. This technology offers remarkable flexibility for producing special holders, removable inserts, or complex geometries, manufactured directly as needed. By providing precise and functional components, 3D printing optimizes workstations, leading to time and cost savings. For "Set in Order," 3D printing allows for the creation of specialized hooks, brackets, holders, bins, and compartments, ensuring streamlined organization of equipment, materials, and components. For "Standardize," 3D printed gauges, blocks, and templates ensure consistent setups and quality checks, promoting uniformity across processes.

Practical Examples: Tool Holders, Custom Bins, Fixture Mounts, Visual Cues

• Custom Tool Holders: These are precisely designed holders for specific tools, ensuring each tool has a designated, easily identifiable spot. This prevents loss, reduces search time, and facilitates quick return. For instance, a quick-release hanging hook for a thread cutting machine was successfully designed and prototyped using 3D printing, demonstrating its strength and functionality.

• Custom Bins and Organizers: Tailored bins and compartments for small parts, fasteners, or components can be 3D printed, often color-coded for immediate visual identification and sorting. These can be designed to fit perfectly within aluminum profile structures, maximizing space efficiency.

• Fixture Mounts and Jigs: 3D printed jigs and fixtures ensure consistent positioning of workpieces, thereby improving quality and reducing errors in assembly. They can also be designed to improve worker posture and ergonomics, reducing fatigue.

• Visual Cues and Signage: Custom printed labels, signs, and visual indicators (e.g., arrows, outlines) are invaluable for designating proper tool locations, workflow paths, and area boundaries. Color-coding can be strategically applied to these printed items to categorize areas - for example, yellow for safety/aisle ways, red for defect/scrap areas, blue for raw materials, and white for production equipment. Shadow boards with colored outlines showing specific tool locations are a classic example, easily created or enhanced with 3D printing.

The ability to involve employees in the assessment, prioritization, design, and prototyping of their own 3D printed 5S solutions fosters a strong sense of ownership and commitment to the 5S system. This iterative, collaborative process is a powerful antidote to the challenges of sustaining 5S, as engagement is critical for long-term adherence. Furthermore, the "on-demand" capability of 3D printing means that custom organizational aids can be produced rapidly as processes change or new tools are introduced, without reliance on external lead times or high minimum order quantities. This directly supports the lean principle of agility and responsiveness, enabling faster iteration and quicker problem-solving in dynamic production environments.

Table 3: 3D Printed Accessories for Enhanced 5S Implementation

Implementing Visual Management for Sustained 5S

Visual management is the cornerstone of effective 5S, transforming complex information into easily understandable visual cues. When integrated with modular aluminum systems and 3D printed accessories, these principles create self-explaining, self-regulating work environments.

Visual management leverages optical signals - such as symbols, colors, graphics, and signal lights - to enable staff to detect problems quickly, even without extensive prior knowledge. This approach provides a level of clarity that written text alone often cannot achieve, making it a powerful tool for communication and error prevention.

Principles of Visual Management: Color Coding, Shadow Boards, Labels, Poka-Yoke

• Color Coding: The strategic use of color adds clarity and order to the workspace, enhancing workflow, safety, quality, and productivity. For example, yellow is commonly used for safety and aisle ways, red for defect and scrap areas, orange for inspection zones, green for finished goods inventory, blue for raw materials, black for work-in-progress, and white for production equipment like machines and benches. These color codes can be applied to floor markings, bins, labels, and tool outlines.

• Shadow Boards: These are essential for organizing and accounting for tools, visually indicating specific tool locations with colored outlines. They are a key component of comprehensive color-coding plans.

• Labels: Clear labeling of storage locations, bins, and individual items ensures that everything is easy to find and put away. Labels can effectively highlight the contents of shelving areas, crates, and cubicles.

• Poka-Yoke (Error-Proofing): Translating to "prevention of carelessness," Poka-Yoke involves designing processes or physical layouts in a way that prevents inadvertent mistakes or random errors from occurring. Examples based on visual elements include using specific sizes, materials, colors, checklists, lights, or mechanically locked connections to guide correct action or prevent incorrect ones. 5S inherently supports Poka-Yoke, as an organized workplace with clear visual cues significantly reduces the likelihood of errors.

Integrating Visual Cues with Modular Systems and 3D Printing

The synergy between modular aluminum profiles and 3D printing creates a dynamic and adaptable framework for visual management.

• Modular Aluminum Profiles: The inherent flexibility of aluminum profiles allows for the easy attachment and integration of various visual aids. Workstation structures can be designed with integrated panels for shadow boards, dedicated mounting points for signs, and channels for efficient cable management, ensuring visual cues remain clear and unobstructed.

• 3D Printing: This technology enables the creation of bespoke, color-coded visual indicators and organizers. This includes printing signs, labels, and parts in designated colors to mark area boundaries, aisles, zones, and safety equipment. Custom color-coded brackets, holders, and storage bins can be produced, along with custom shadow boards featuring precise colored outlines. Furthermore, colorful gauges and templates can be 3D printed for quality control and standardization, and even custom tape dispensers and mounts can be created for precise floor markings. The ability to rapidly print prototypes allows for iterative testing and optimization of visual cues to ensure maximum effectiveness before widespread deployment.

Visual management, particularly when enhanced by modularity and 3D printing, transforms workspaces into self-explaining environments. This profound impact extends to training efficiency and safety compliance. Visual signals enable staff, even those without prior knowledge, to quickly detect problems. This level of clarity simplifies onboarding for new employees, reducing the learning curve and potential for errors. For operations leaders, this translates to a safer, more adaptable workforce that can rapidly understand and adhere to procedures, even in diverse linguistic environments. The combination of flexible physical structures (aluminum profiles) and rapid, customized visual elements (3D printing) allows for dynamic visual management systems. If a process changes, the physical layout can be reconfigured, and new, updated visual cues can be 3D printed on demand. This synergy ensures that visual cues remain accurate and relevant as processes evolve, reinforcing the "Standardize" and "Sustain" pillars and providing a future-proof solution for maintaining lean principles in agile manufacturing environments.

Designing Flexible 5S-Compliant Zones for Continuous Improvement

The true power of 5S is realized when its principles are integrated into a dynamic system that supports continuous improvement. Flexible workstation systems built with modular aluminum profiles, enhanced by 3D printed accessories, are uniquely positioned to enable this adaptability.

Strategies for Adaptable Workstation Layouts

Modern production environments are characterized by short fabrication cycles, smaller batch volumes, and a much wider variety of products. To respond effectively to these demands, production systems must be developed and reconfigured with similar speed. This necessitates that workstations be customized for specific operations rather than rigidly standardized, with flexibility as the essential element.

Modular aluminum profile systems provide this crucial adaptability. They allow for quick and easy modification, adjustment, or complete change of structures with minimal downtime compared to static workstations made of steel, wood, or other materials. This reconfigurability means that entire U-cells or individual workstations can be modified or moved very easily, a benefit derived from their low weight and innovative connector systems. The integration of locking wheels on each station further enhances their mobility and simplifies reconfigurations.

Leveraging Modular Design for Ongoing Process Optimization

Modular design is not merely about initial setup; it is a strategic investment in future agility, enabling continuous process optimization:

• Supporting the "Sustain" Pillar: The ability to easily reconfigure and adapt layouts is paramount for sustaining 5S initiatives. As processes improve and evolve, the physical environment can be quickly updated to reflect new standards, actively preventing regression to previous states of disorganization.

• Facilitating Kaizen: Modular design directly supports the Kaizen philosophy of small, continuous improvements. Engineers and operators can experiment with layout changes, test new arrangements, and implement improvements rapidly without significant capital expenditure or disruptive downtime.

• Optimizing Flow: Flexible layouts can be precisely designed to ensure uninterrupted material and information flow, eliminating unnecessary travel and establishing a logical order of processes.

• Ergonomic Evolution: As ergonomic understanding advances or specific operator needs change, modular workstations can be adjusted in height, reach, and accessory placement to maintain optimal comfort and productivity, directly contributing to worker well-being and efficiency.

• Space Optimization: Modular systems allow for virtual experimentation with equipment and workstation locations, rotations, and orientations in design software before committing to physical changes. This maximizes square footage utilization and ensures the most efficient use of valuable factory space.

This approach transforms the procurement of workstation infrastructure from a static capital expenditure into a strategic investment in organizational agility. Factories gain the capacity to quickly pivot to new product lines, adapt to market shifts, or scale production up or down without costly retooling or extensive downtime. This positions modular solutions as enabling long-term competitive advantage in dynamic markets. Furthermore, the ease with which changes can be implemented with modular systems (e.g., using a single Allen key) empowers employees to take greater ownership of their workspace improvements. This creates a powerful feedback loop where physical flexibility fosters workforce empowerment, which in turn reinforces the "Sustain" pillar and drives continuous improvement from the ground up, moving towards a more collaborative, empowered lean culture.

Avoiding Common 5S Layout Mistakes Through Modular Solutions

While 5S offers immense benefits, its implementation is often fraught with challenges, leading to regression and disillusionment. Many companies struggle particularly with the "Standardize" and "Sustain" steps. However, a strategic approach leveraging modular aluminum profiles and 3D printed accessories can significantly mitigate these common pitfalls.

Typical Pitfalls in 5S Implementation

• Lack of Sustainment: A significant number of organizations fail at their initial attempt to implement 5S, especially with the "Standardize" and "Sustain" phases. The enthusiasm for 5S can often be a "sugar high," feeling great for a week before crashing back to the original state. This regression often stems from an absence of rigorous auditing processes, an inability to identify and fix the root causes of low scores, and an insufficient cultural shift within the organization.

• Rigid, Inflexible Designs: Traditional, fixed workstation layouts become significant obstacles when production processes change, leading to the accumulation of clutter and a breakdown of the "Set in Order" principle. Modifying these rigid layouts is typically time-consuming, expensive, and requires specialized skills, discouraging necessary adaptations.

• Poor Employee Engagement/Ownership: If 5S is perceived as a top-down mandate imposed on employees rather than an initiative driven by their involvement, adherence will inevitably falter. A lack of comprehensive training on the benefits of 5S and proper procedures further contributes to this disengagement.

• Inadequate Visual Management: The failure to effectively use visual management principles or to make it easy for employees to return parts to their original positions is a common issue. Neglected or unclear markings quickly lose their effectiveness, leading to confusion and disorganization.

• Insufficient Red Tag Process: Problems can arise from the absence of a designated red tag area, difficulties in obtaining approval to remove tagged items across all shifts, or a general reluctance to allow the removal of unnecessary items from the work area.

• Ignoring Ergonomics: Neglecting ergonomic design principles or failing to locate parts and tools in optimal positions for operators can lead to inefficiency, increased worker discomfort, and potential injuries, thereby undermining the "Set in Order" pillar and overall productivity.

How Modular Aluminum and 3D Printing Mitigate These Challenges

Modular aluminum profiles and 3D printing offer robust solutions to these common 5S implementation challenges:

• Overcoming Sustainment Challenges: The inherent flexibility of modular aluminum systems allows for rapid reconfigurations. This means that as processes evolve, the physical environment can be easily updated to reflect new standards, actively preventing regression and directly supporting the "Sustain" pillar. The ease of modification, often requiring minimal effort, reduces the friction associated with maintaining and improving 5S, making it easier to embed into daily routines. Furthermore, custom 3D printed aids enable the on-demand creation of updated labels, shadow boards, and organizational tools, ensuring visual management remains current and effective, which is crucial for sustainment.

• Addressing Rigid Designs: Modular aluminum profiles are inherently flexible and reconfigurable, allowing for dynamic workstation layouts that can evolve seamlessly with process changes. This eliminates the need for costly and time-consuming rework often associated with fixed structures.

• Fostering Employee Engagement: The ease of customization offered by modular systems and 3D printing empowers employees to actively participate in designing and refining their own workspaces. This hands-on involvement cultivates a strong sense of ownership and commitment, which is crucial for the long-term success of 5S initiatives.

• Enhancing Visual Management: Modular structures provide ideal frameworks for integrating visual cues, such as dedicated mounting points for shadow boards and clearly defined zones for floor marking. 3D printing further enhances this by enabling the creation of highly specific, color-coded visual aids, ensuring that "Set in Order" is intuitive and "Standardize" is consistently reinforced.

• Supporting Ergonomic Design: Modular aluminum profiles allow for precise adjustments to workstation height, reach, and component placement, ensuring that ergonomic principles are met and continuously optimized for worker comfort and efficiency. Additionally, 3D printing can be used to create custom ergonomic grips or jigs, further enhancing worker well-being.

Table 4: Common 5S Implementation Mistakes and Modular Solutions

The "Sustain" pillar is often the most challenging aspect of 5S, requiring a significant cultural shift within an organization. However, the ease with which modular systems facilitate modifications directly lowers the effort required for sustainment. This means that while cultural commitment is paramount, the physical environment can either hinder or facilitate cultural change. Modular solutions act as a physical enabler for the cultural adoption of continuous improvement, making the "Sustain" phase less daunting and more attainable. Furthermore, by enabling easier and more adaptable physical changes, modular systems reduce the perceived risk associated with 5S implementation. Companies can start small, iterate, and scale, validating improvements without committing to rigid, costly infrastructure. This aligns with lean principles of experimentation and rapid learning, making the overall lean journey less prone to significant, demoralizing failures.

Tools for Advanced 5S Layout Planning

While hands-on implementation is crucial, modern industrial design benefits immensely from digital tools that allow for virtual planning, simulation, and optimization of workstation layouts before any physical changes are made.

• SketchUp: This is a user-friendly 3D modeling application widely utilized in various design fields, including mechanical engineering. It empowers users to create and manipulate 3D models of objects, add intricate details, and visualize designs to test functionality and identify potential flaws. For 5S and workstation design, SketchUp allows users to import existing floorplans, create detailed 3D models of building elements, and source pre-built models of machinery, racking, and material handling equipment from its extensive 3D Warehouse. It supports the creation of dynamic components with parametric rules, enabling automatic updates across multiple instances of a design. This functionality is invaluable for visualizing employee and machinery flow, optimizing storage, and ensuring overall functionality. Its intuitive interface, capacity for rapid conceptual work, collaborative features, and the ability to showcase various design options through "Scenes" for virtual walkthroughs make it a powerful tool for lean layout planning.

• AutoCAD LT: While often recognized for its 2D drafting capabilities, CAD software like AutoCAD is fundamental for precise layout planning in manufacturing environments. Advanced 3D CAD software can effectively visualize and plan efficient manufacturing plant layouts, encompassing machines, workstations, storage areas, and walkways. For 5S and workstation design, AutoCAD LT supports the initial stages of understanding requirements, analyzing workflows, determining optimal layout types (e.g., process, product, cellular), designing layouts with precise equipment sizes and movements, and even testing and validating designs through simulation. Its benefits include high precision and alignment, which are crucial for detailed engineering and ensuring dimensional accuracy. This precision helps optimize space utilization, accelerate production, and visually validate layouts for potential efficiencies.

These digital design tools collectively act as a "virtual playground" for lean experimentation. They enable engineers and designers to visualize, simulate, test, and validate various layout configurations and workstation designs before any physical changes are implemented. This means that potential flaws, inefficiencies, or ergonomic issues can be identified and corrected digitally, avoiding costly physical rework. This capability accelerates the design cycle, reduces waste associated with physical prototypes, and allows for more aggressive experimentation with different 5S-compliant layouts. It fosters a "fail fast, learn fast" approach in a digital environment, directly supporting continuous improvement. Furthermore, these tools play a vital role in bridging the gap between design and manufacturing for 5S solutions. As discussed in Design for Manufacturing (DFM) principles, integrating design and manufacturing considerations early streamlines processes and reduces costs.

Summary: Actionable Insights for a Leaner, More Organized Future

The journey to operational excellence is continuous, and 5S provides the indispensable foundation for this endeavor. By strategically integrating modular aluminum profiles and custom 3D printed accessories, organizations can move beyond basic tidiness to create truly dynamic, ergonomic, and highly efficient work zones that embody the spirit of lean manufacturing.

Key Takeaways:

• 5S is a strategic lean methodology, not merely a cleanliness initiative. Its systematic approach to workplace organization profoundly drives productivity, enhances safety, and improves quality. The success of 5S is intrinsically linked to the thoughtful design of physical layouts and the effective implementation of visual management principles.

• Modular aluminum profiles are the ideal structural backbone for 5S-compliant workstations. Their unparalleled flexibility, reconfigurability, and durability, coupled with ease of assembly and modification, directly support the "Set in Order" and, crucially, the "Sustain" pillars by enabling continuous adaptation to evolving processes.

• 3D printing unlocks hyper-customization for 5S accessories. This technology allows for the on-demand creation of bespoke tool holders, color-coded bins, custom jigs, and precise visual cues. These tailored solutions significantly enhance organization, standardization, and visual communication, directly addressing the unique needs of any workstation.

• Visual management, powerfully amplified by modularity and 3D printing, transforms workspaces into self-explaining environments. This reduces errors, accelerates training for new employees, and consistently reinforces lean principles throughout the operation.
• By embracing the synergy of these technologies, companies can design flexible 5S zones that evolve seamlessly with production processes. This approach fosters a robust culture of continuous improvement (Kaizen) and proactively mitigates common pitfalls, such as regression due to rigid designs or a lack of employee engagement.

• Leveraging digital design tools further refines this approach, allowing for virtual planning, simulation, and optimization of layouts. This minimizes risk, accelerates deployment, and ensures that physical implementations are as efficient as their digital blueprints.

Call to Action:

To embark on or accelerate your organization's lean transformation, consider these actionable steps:

• Assess your current operational landscape to identify specific challenges where disorganization or inefficiency are hindering productivity and process flow.

• Explore the transformative potential of modular aluminum profile systems to provide the flexible and adaptable framework for your next-generation workstations and production lines.

• Investigate the capabilities of in-house 3D printing to create custom, on-demand organizational and visual aids that are precisely tailored to your unique processes and tools.

• Empower your teams by actively involving them in the design and implementation of their 5S-compliant workspaces. This participation is crucial for fostering ownership and ensuring the long-term sustainment of your lean efforts.

• Embrace the powerful synergy of modular infrastructure and additive manufacturing to build a truly lean, organized, and continuously improving industrial environment that stands ready for future challenges.
